Palomar
(Other) Schematic Section Documentation Project CBTricks.com |
TIPS: If the files with or icon will not display see the Site FAQ for help on printing and using this information. |
Palomar | |
Other amps that are using the Palomar Name | |
400 | |
HD 250 FET | |
HD 450 FET | |
Blue Lightning | |
Elite 500 | |
Elite 400HD | |

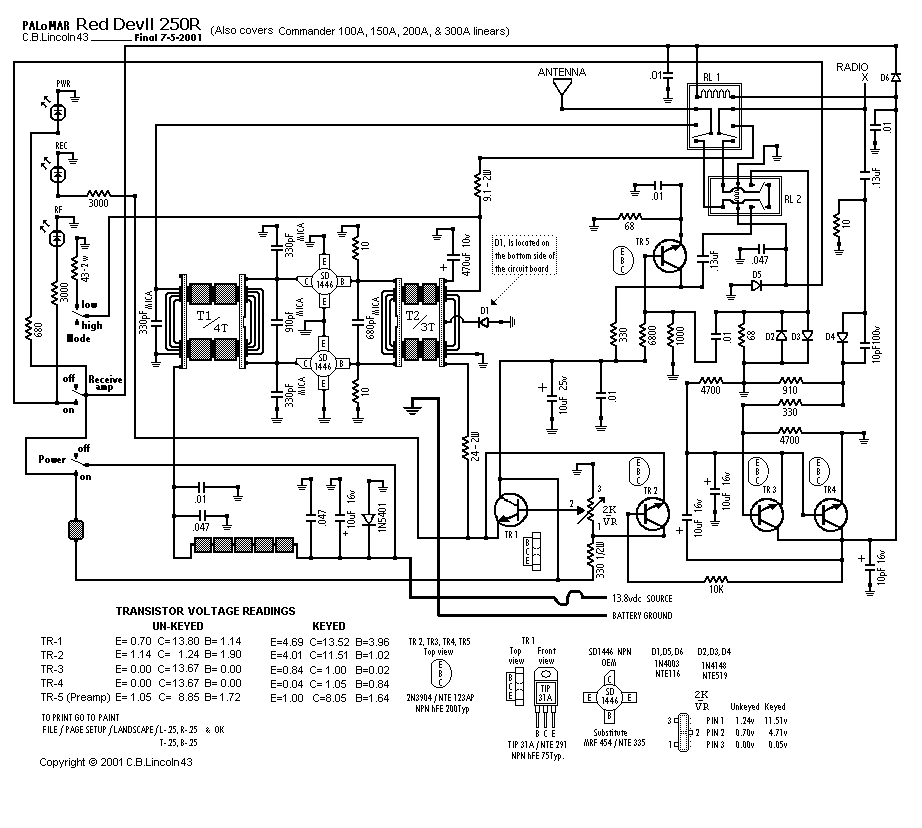

Red
Devll 250R (Also covers Commander 100A, 150A, 200A, 300A) (Many Thanks to C.B.Lincoln for this drawing) |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every amp presented.
