Palomar
Electronics Corp. Model TX-5200
Documentation
Project
CBTricks.com
Instruction
Sheet
TX5200 Schematic Diagram

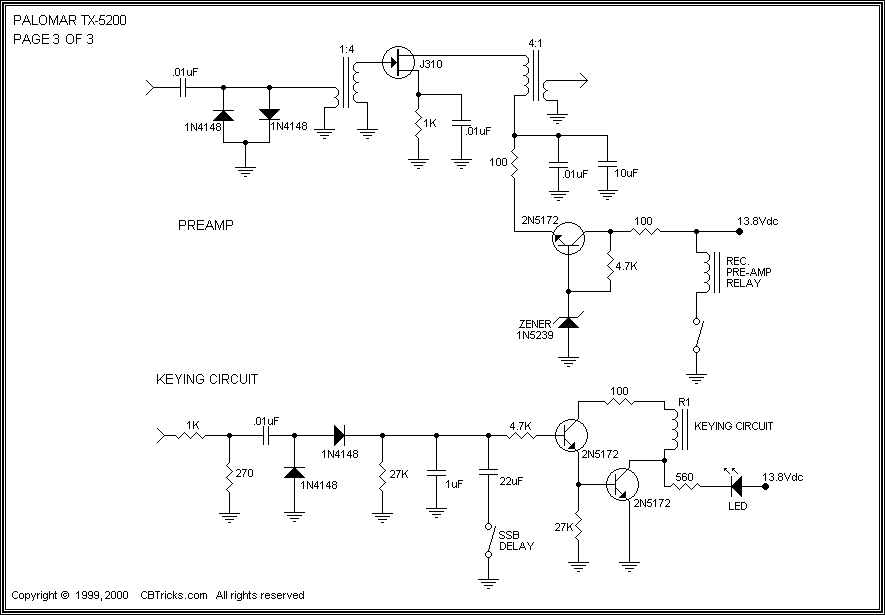

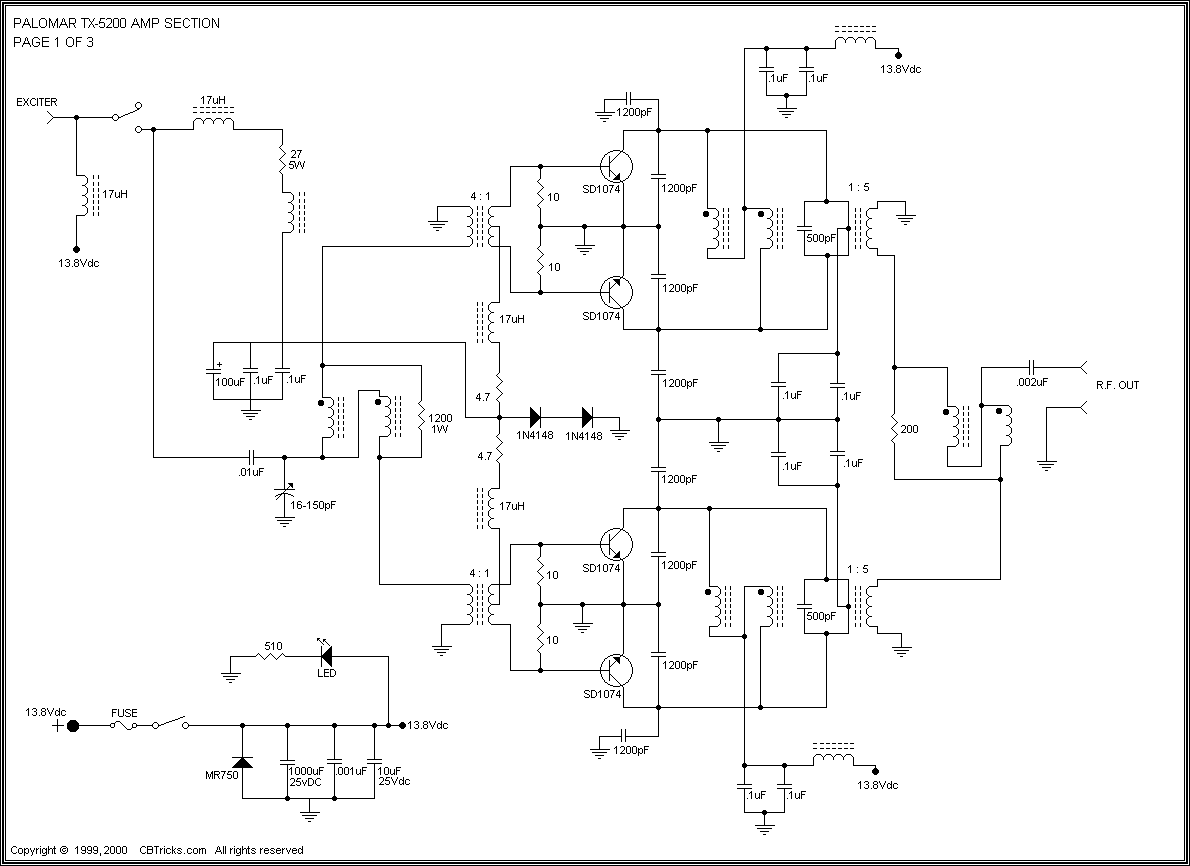

Power Amp Section
REC. Preamp and Keying
Circuit

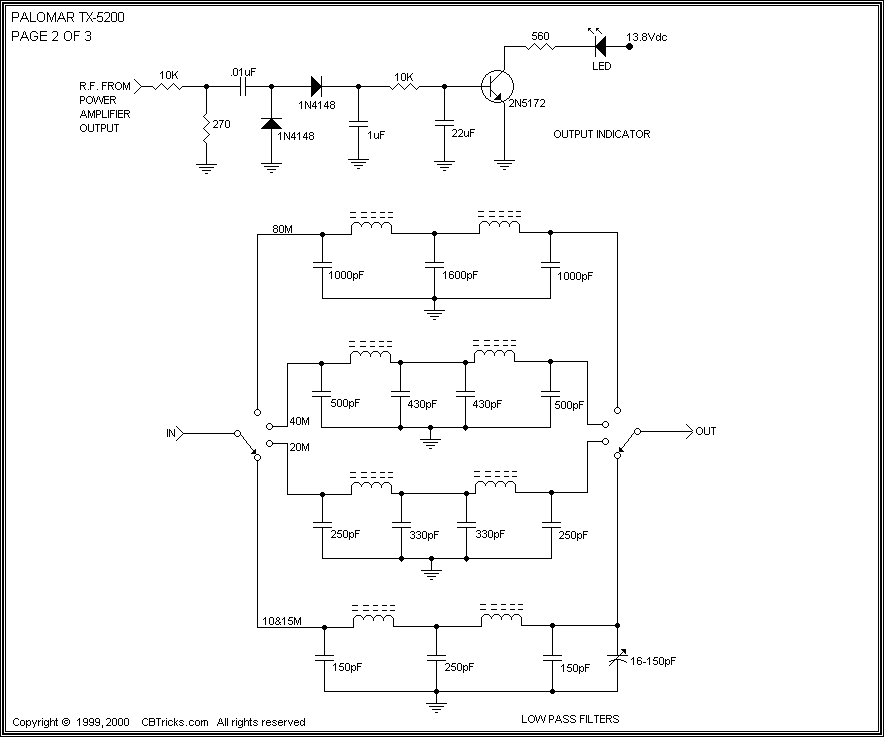

Low Pass Filter Section
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every amp presented.
