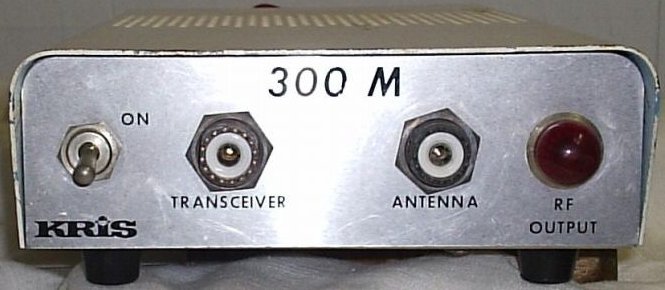

Kris Inc. 300M
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.

Click on picture to see close-up


Diagrams

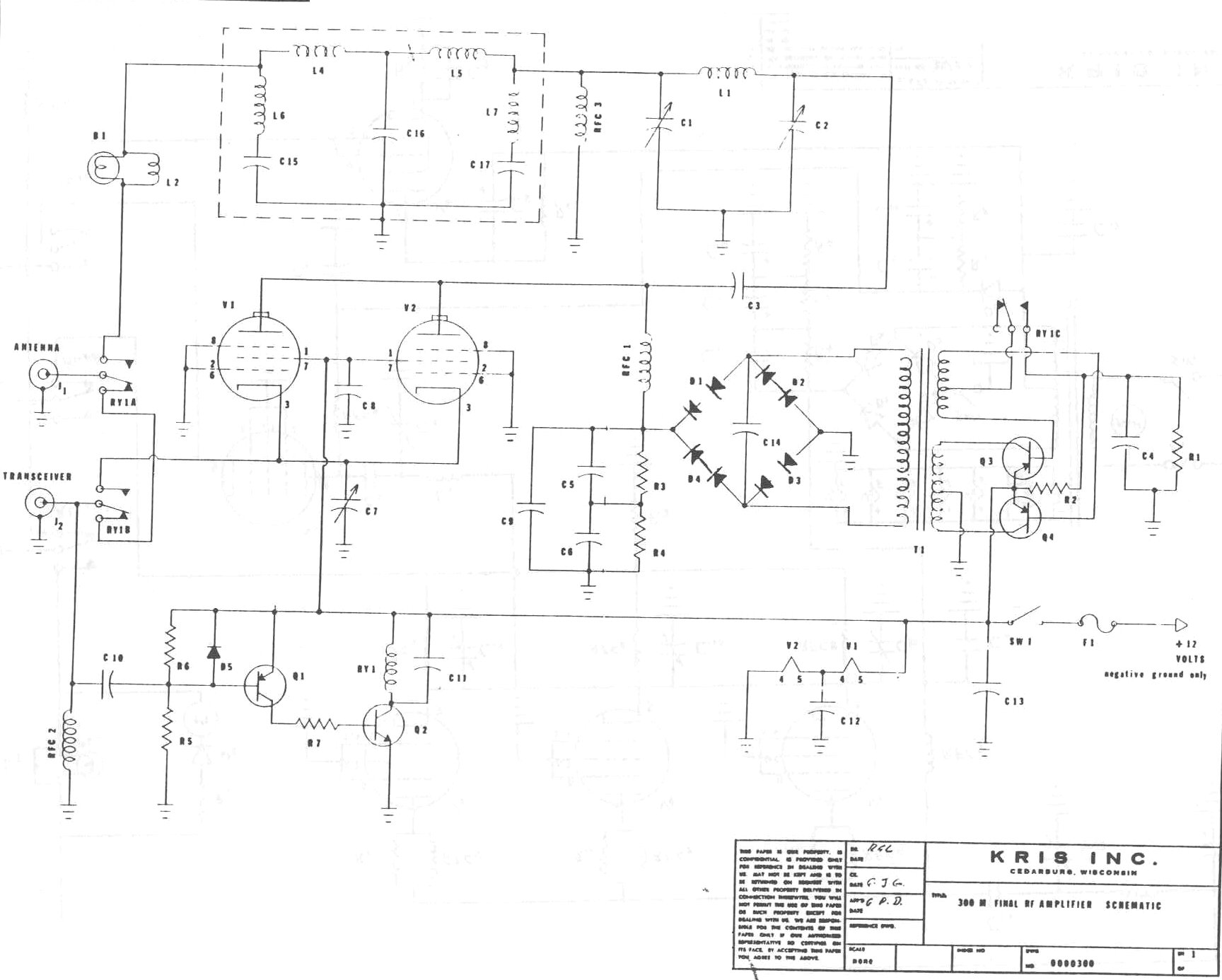

     Schematic Diagram
     Schematic Diagram

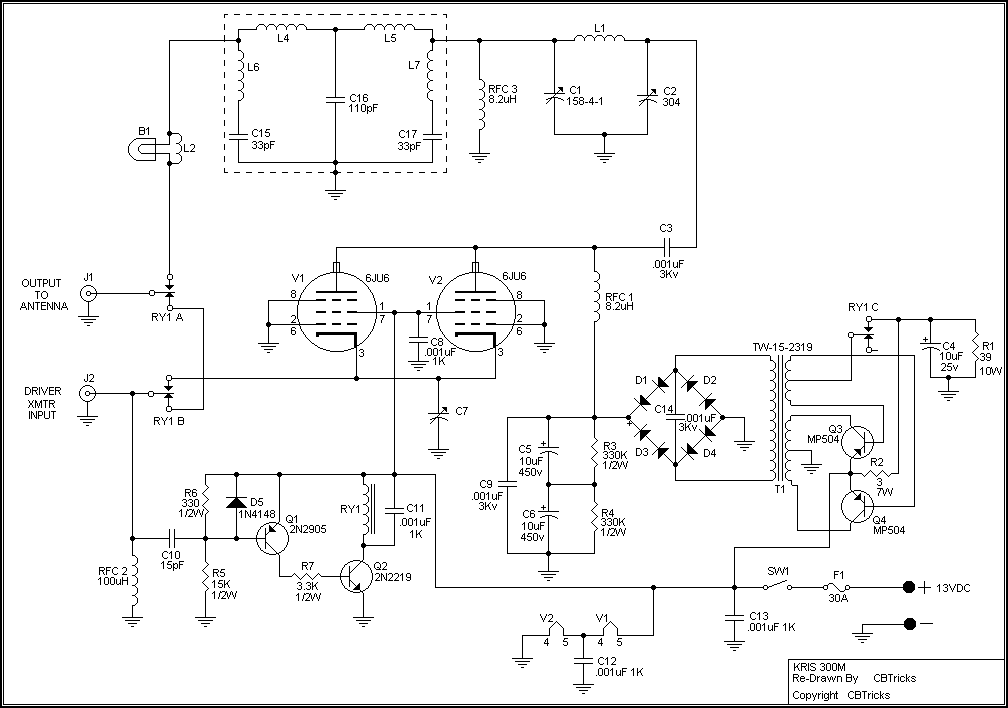

     Schematic Diagram (Redraw)
     Schematic Diagram (Redraw)
