Golden Eagle 1K
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.




DIAGRAMS

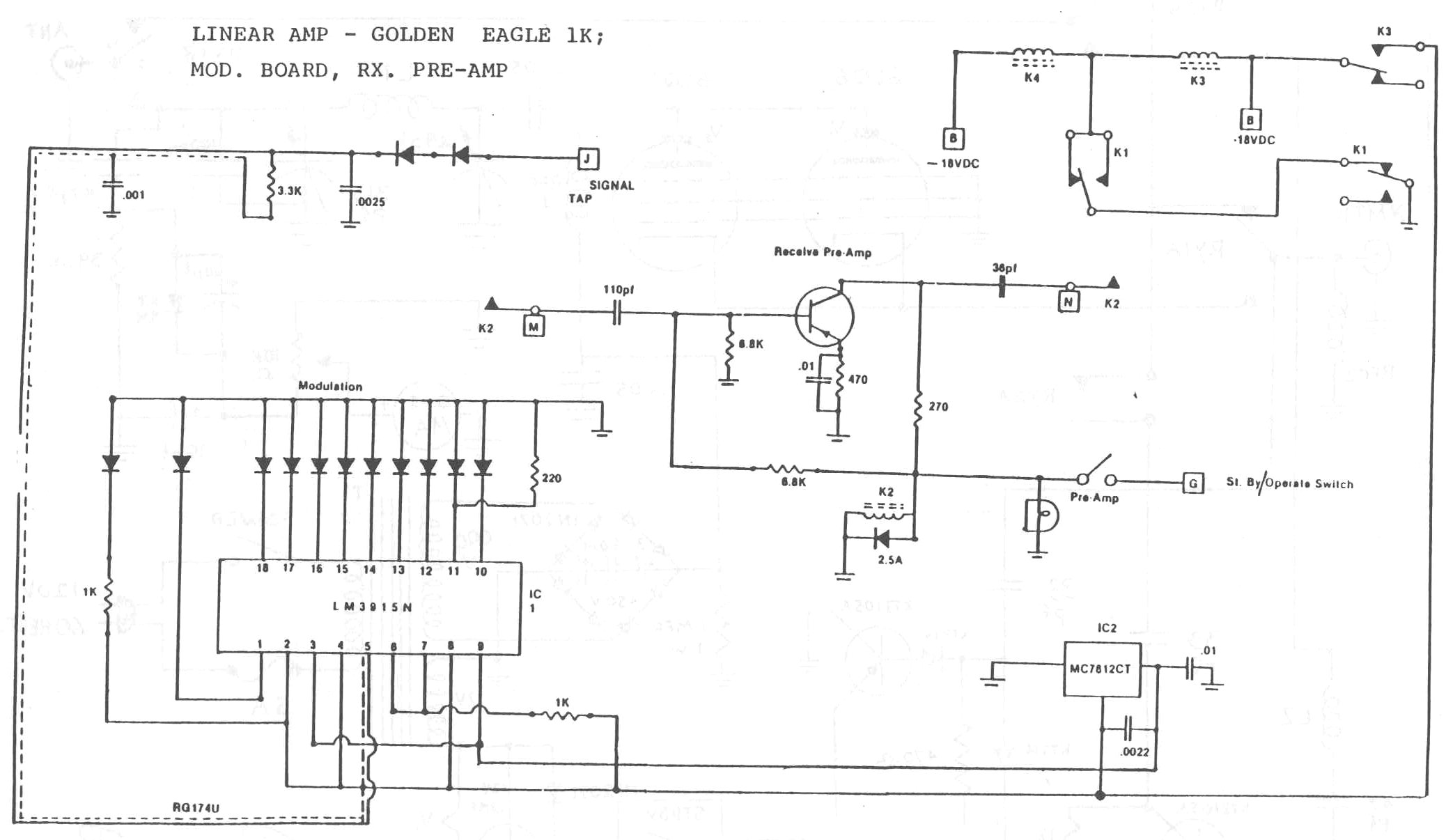

    MOD, RX Preamp Schematic Diagram
    MOD, RX Preamp Schematic Diagram

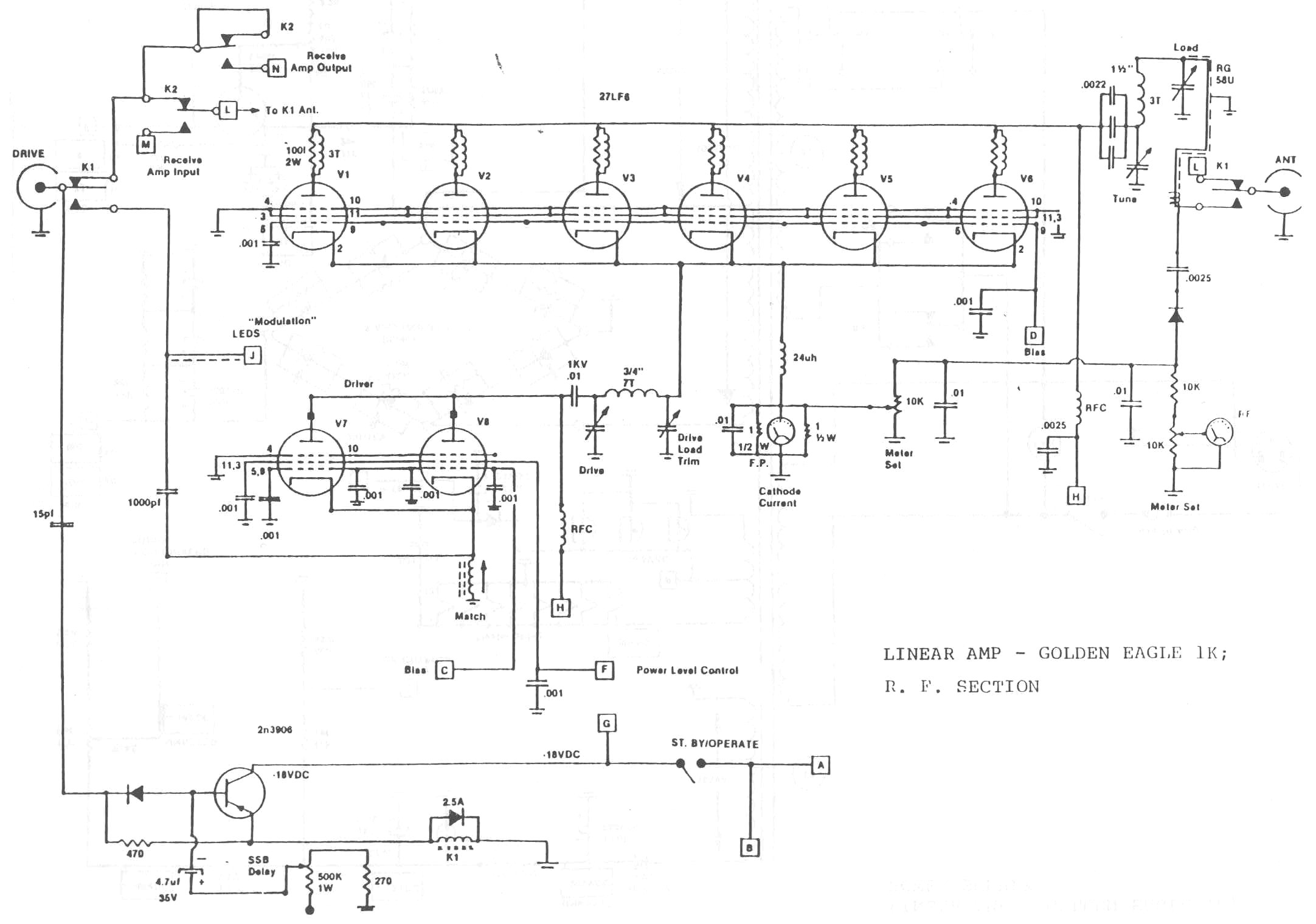

    RF Deck Schematic Diagram
    RF Deck Schematic Diagram

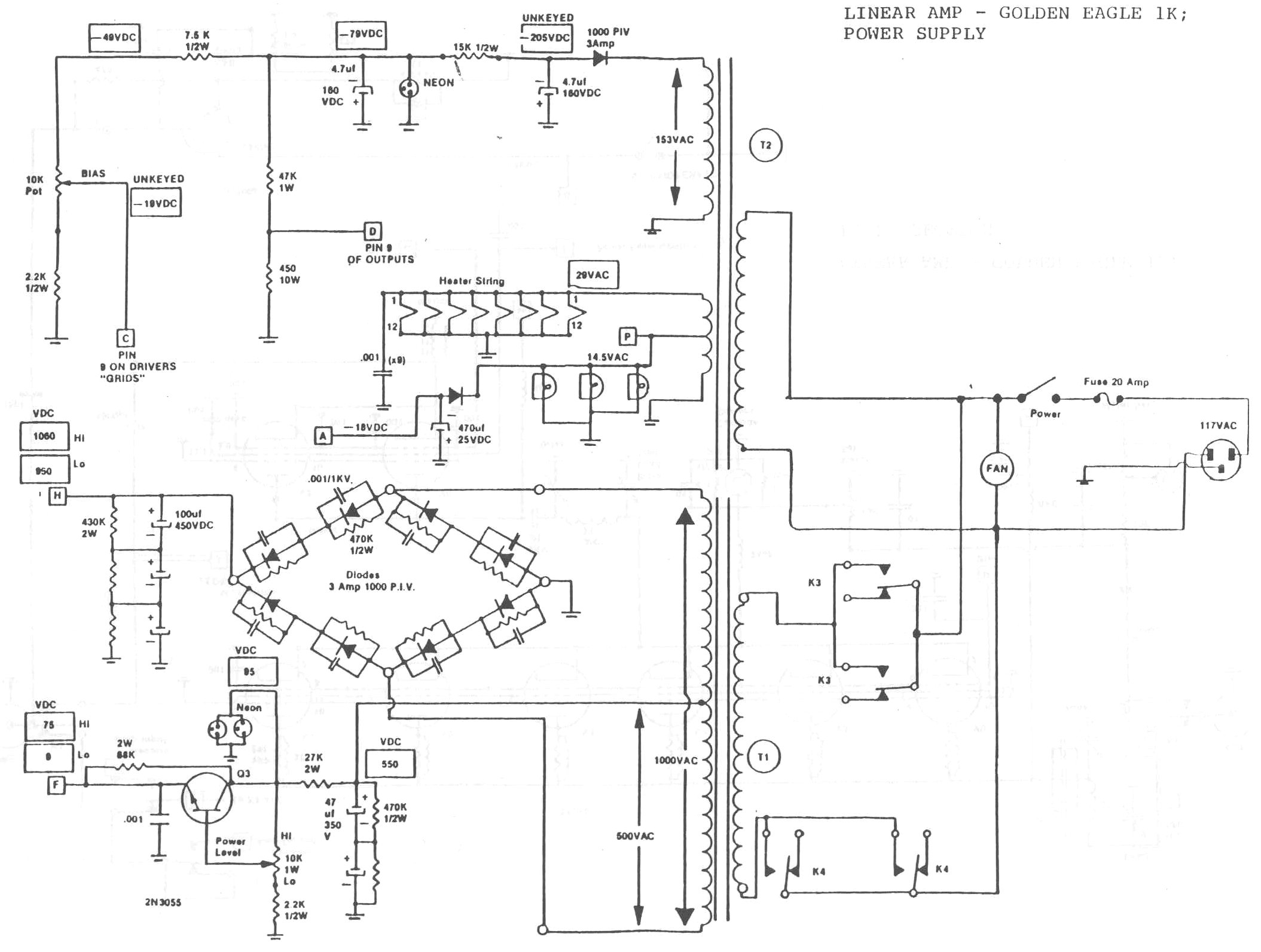

    Power Supply Schematic Diagram
    Power Supply Schematic Diagram
