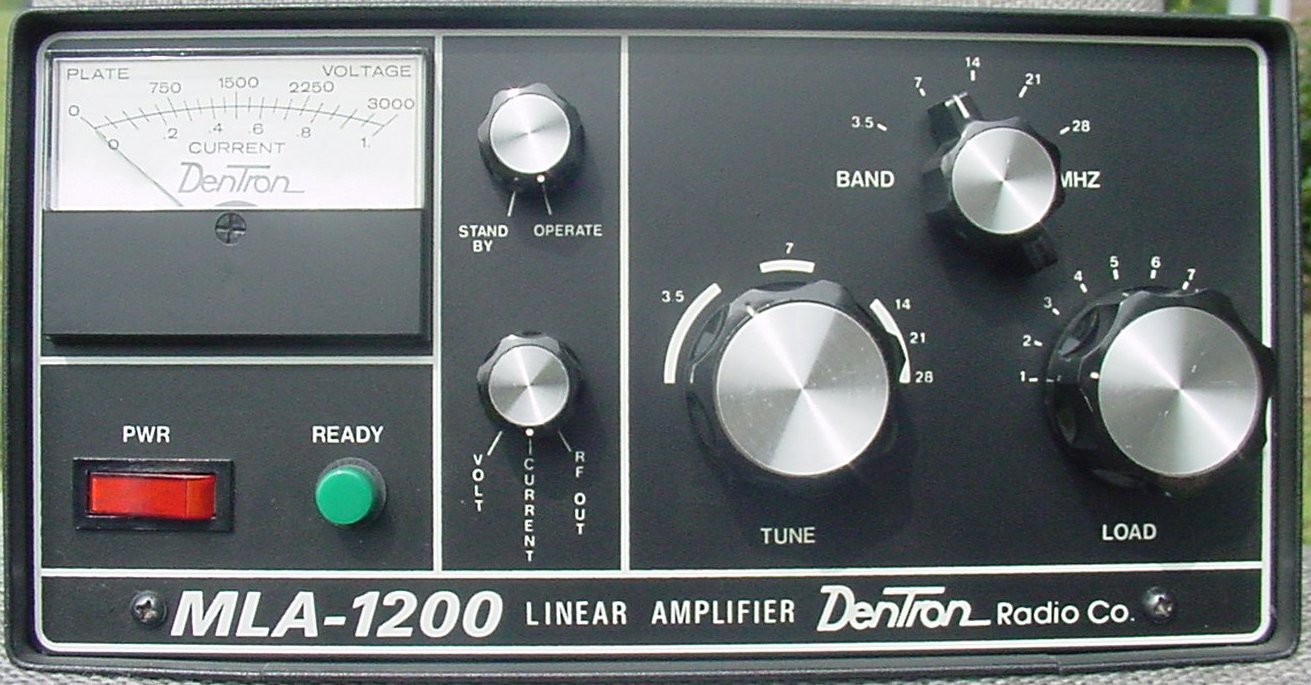

Dentron MLA-1200
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.

Click graphic to see closeup


DIAGRAMS

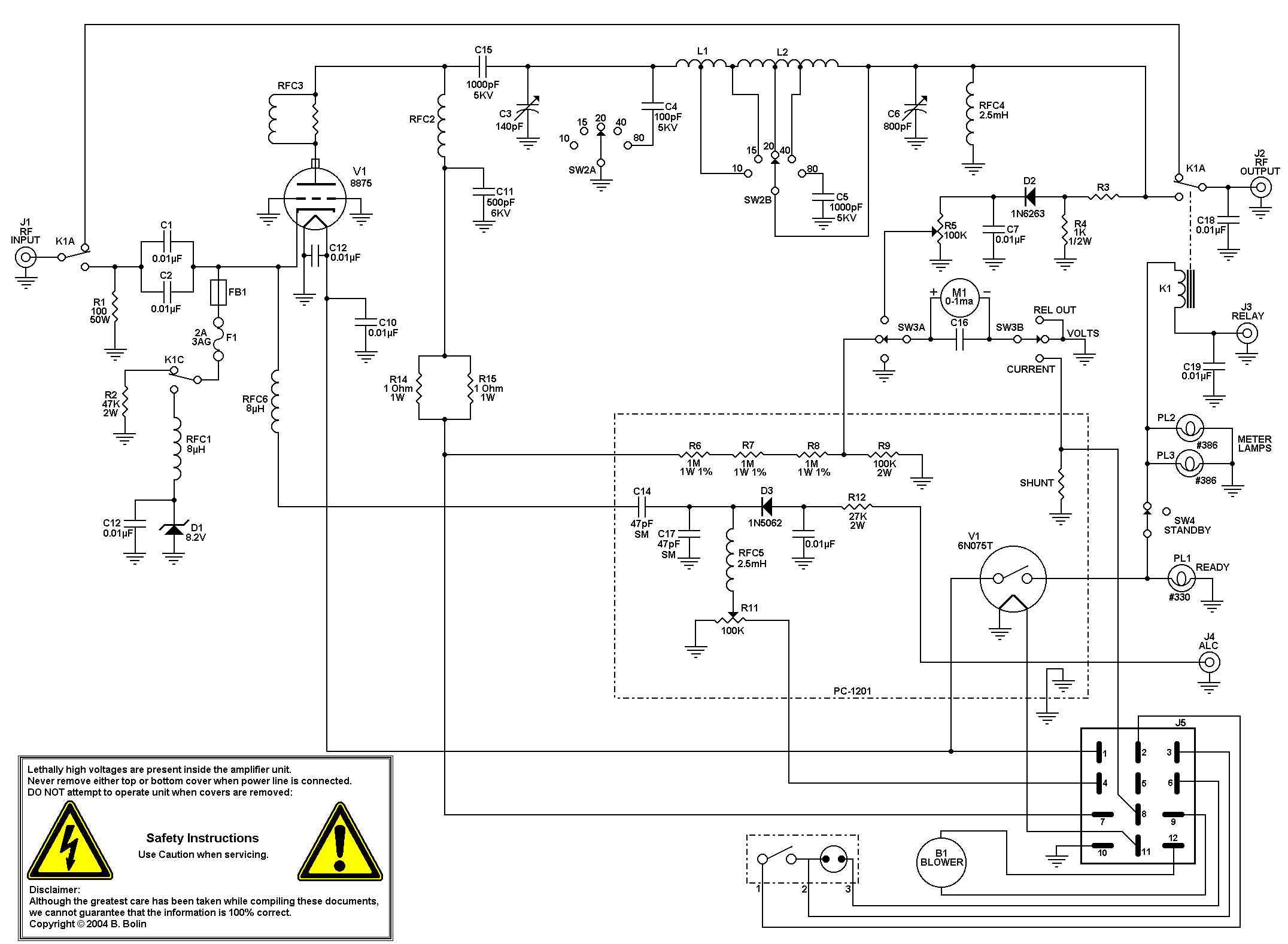

    Schematic Diagram RF Deck
    Schematic Diagram RF Deck

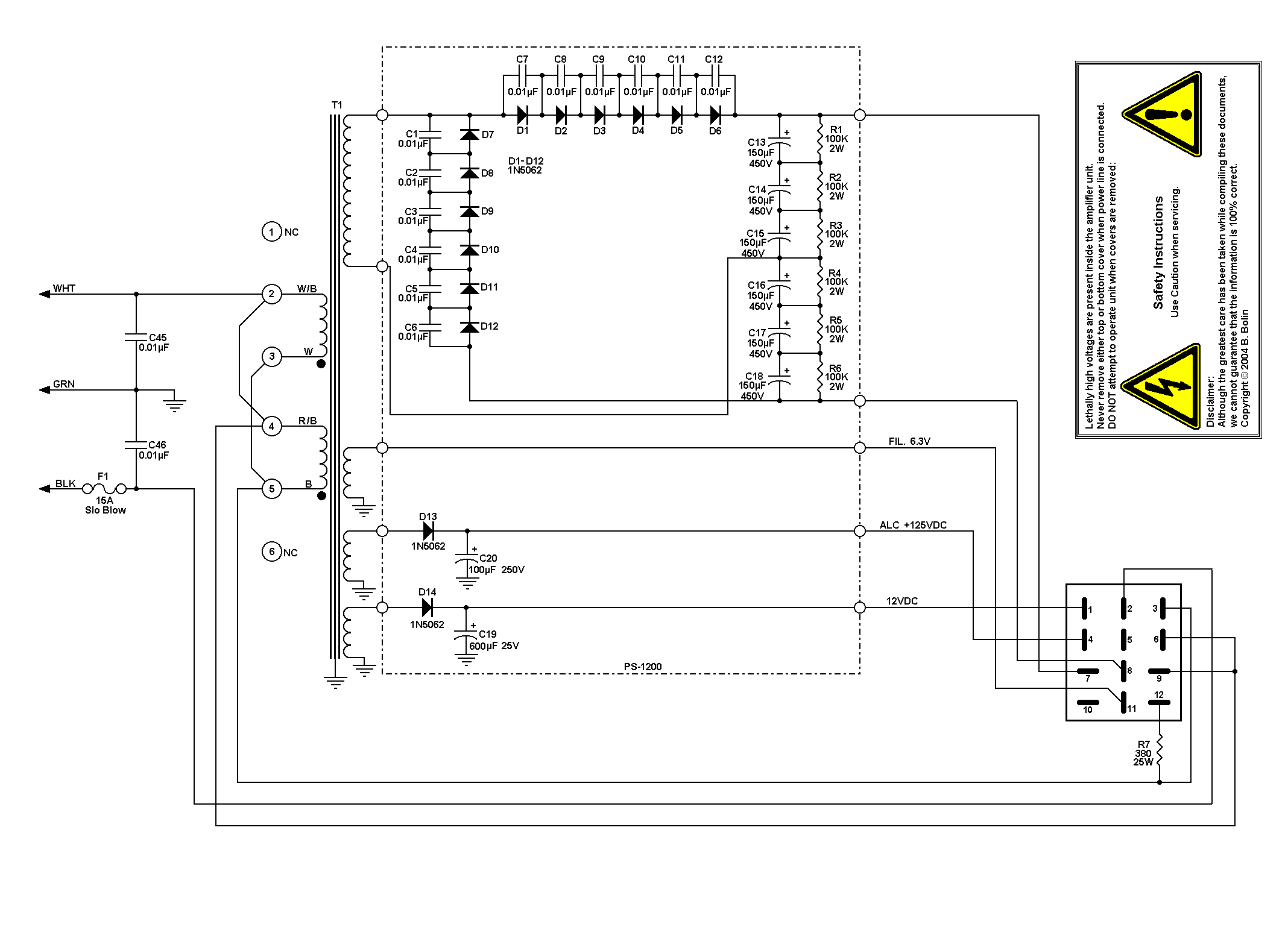

    Schematic Diagram Power Supply
    Schematic Diagram Power Supply

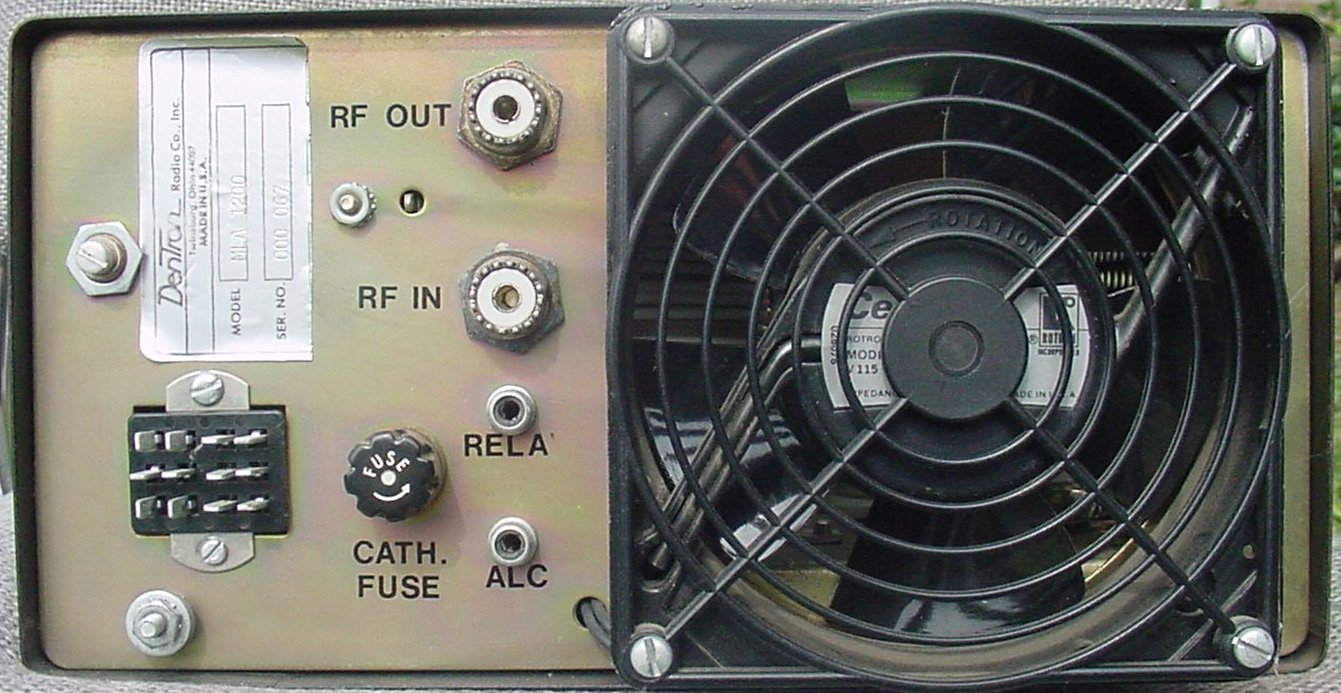

View of Back


Copyright © 1998,1999,2000, 2001, 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every amp presented.
