Brewer
Lab's Schematic Section Documentation Project CBTricks.com |
TIPS: If the files with or icon will not display see the Site FAQ for help on printing and using this information. |
(Thanks to Stovebolt for helping in this section)
Brewer Lab's | ||

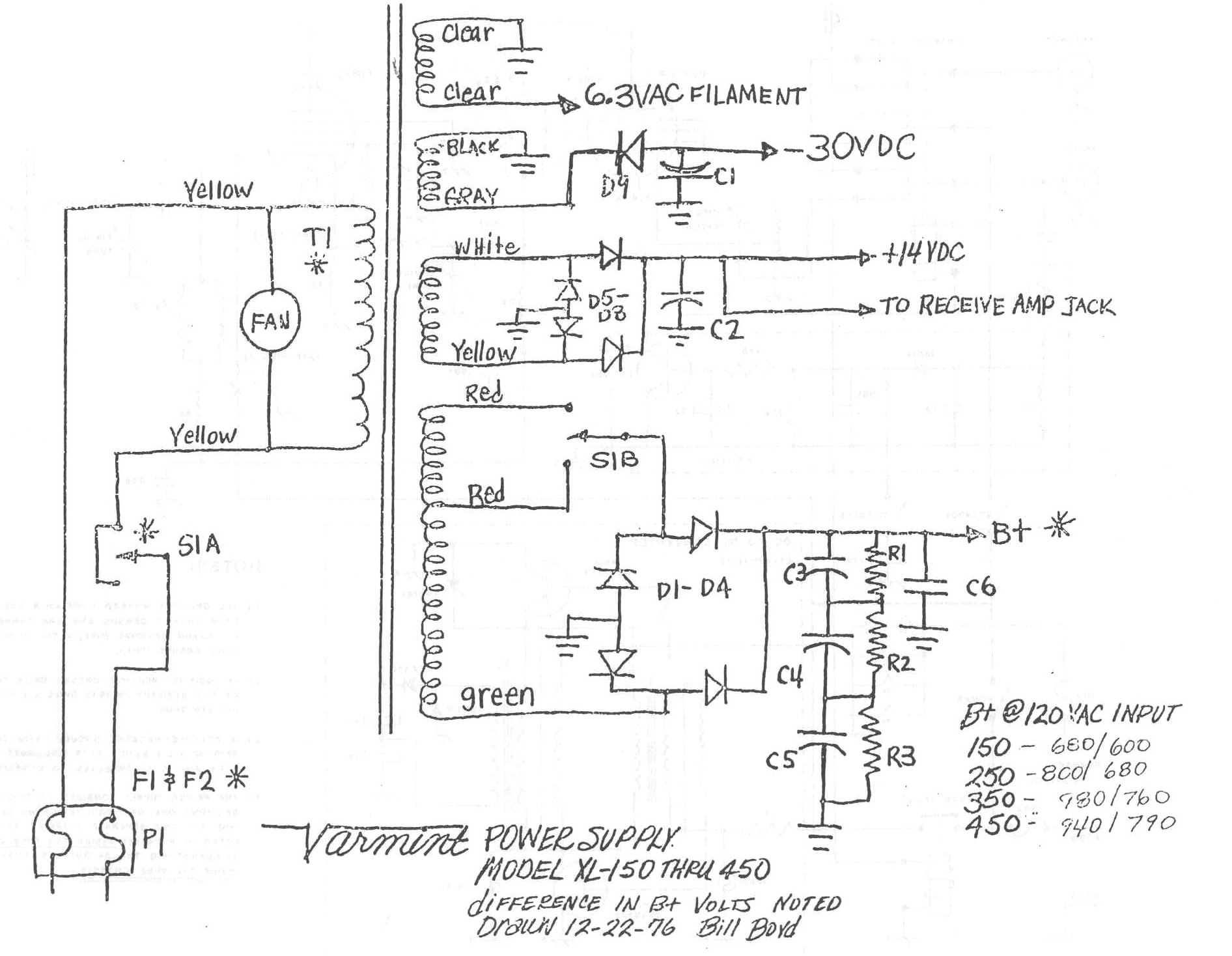

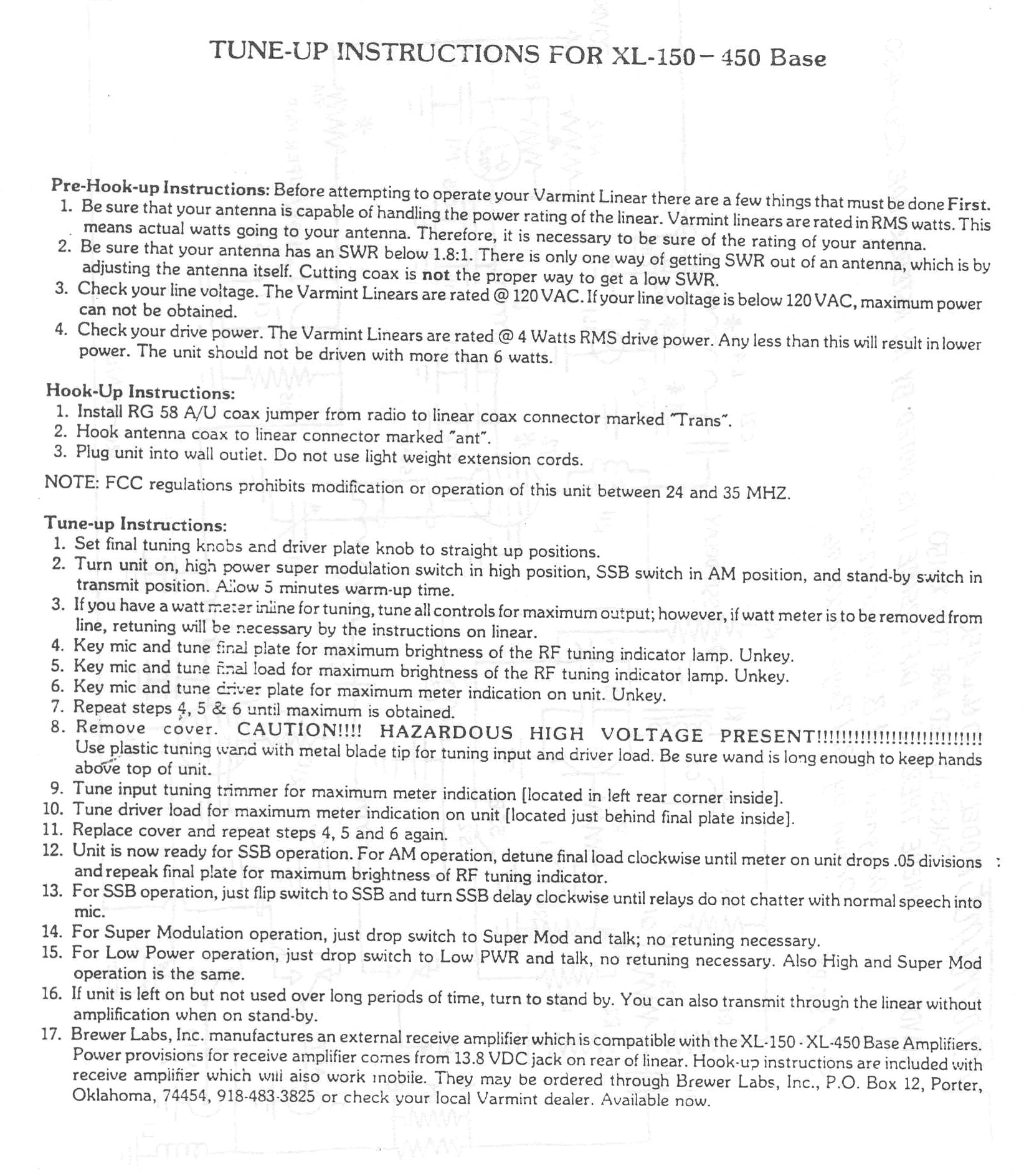

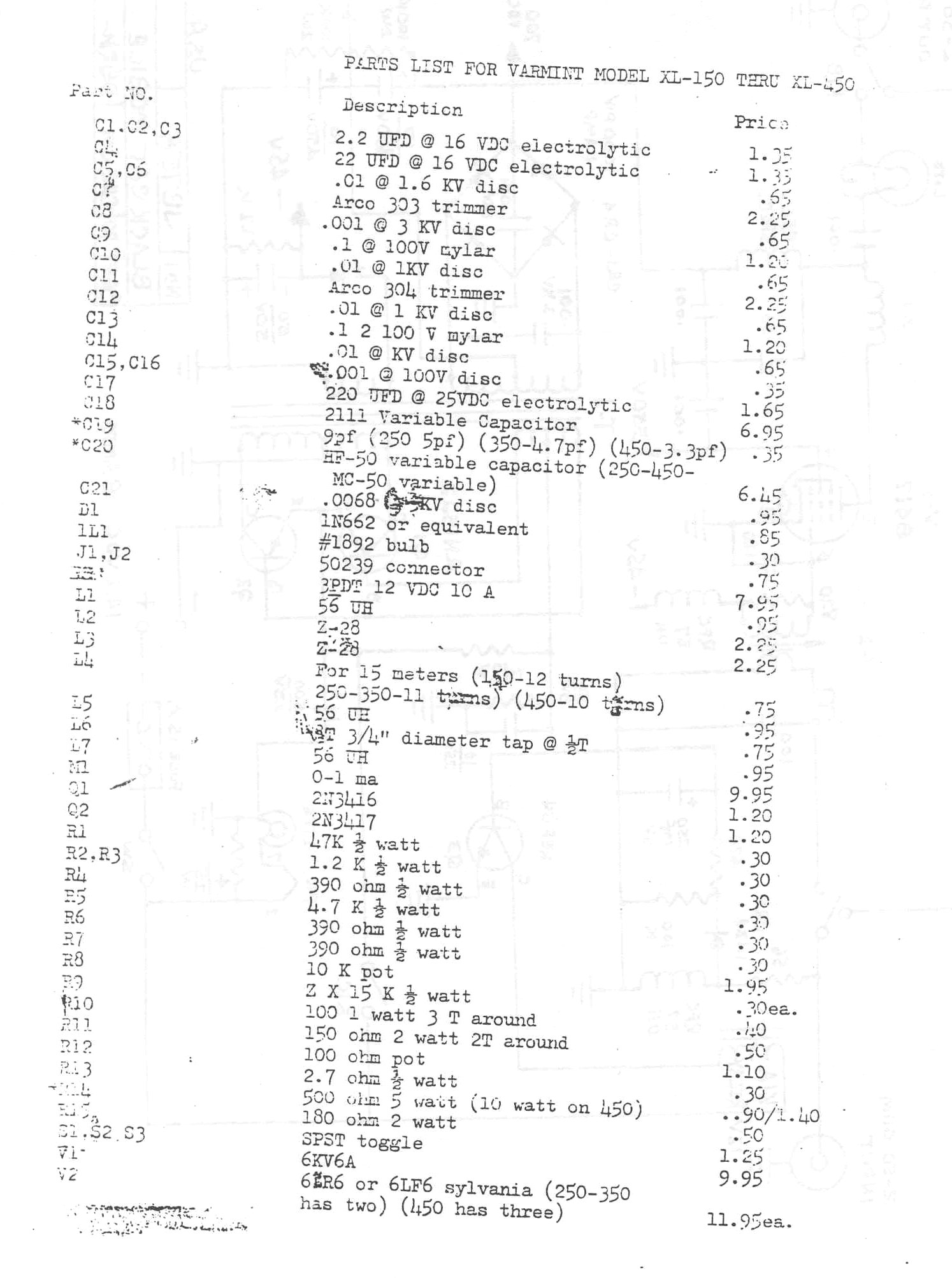

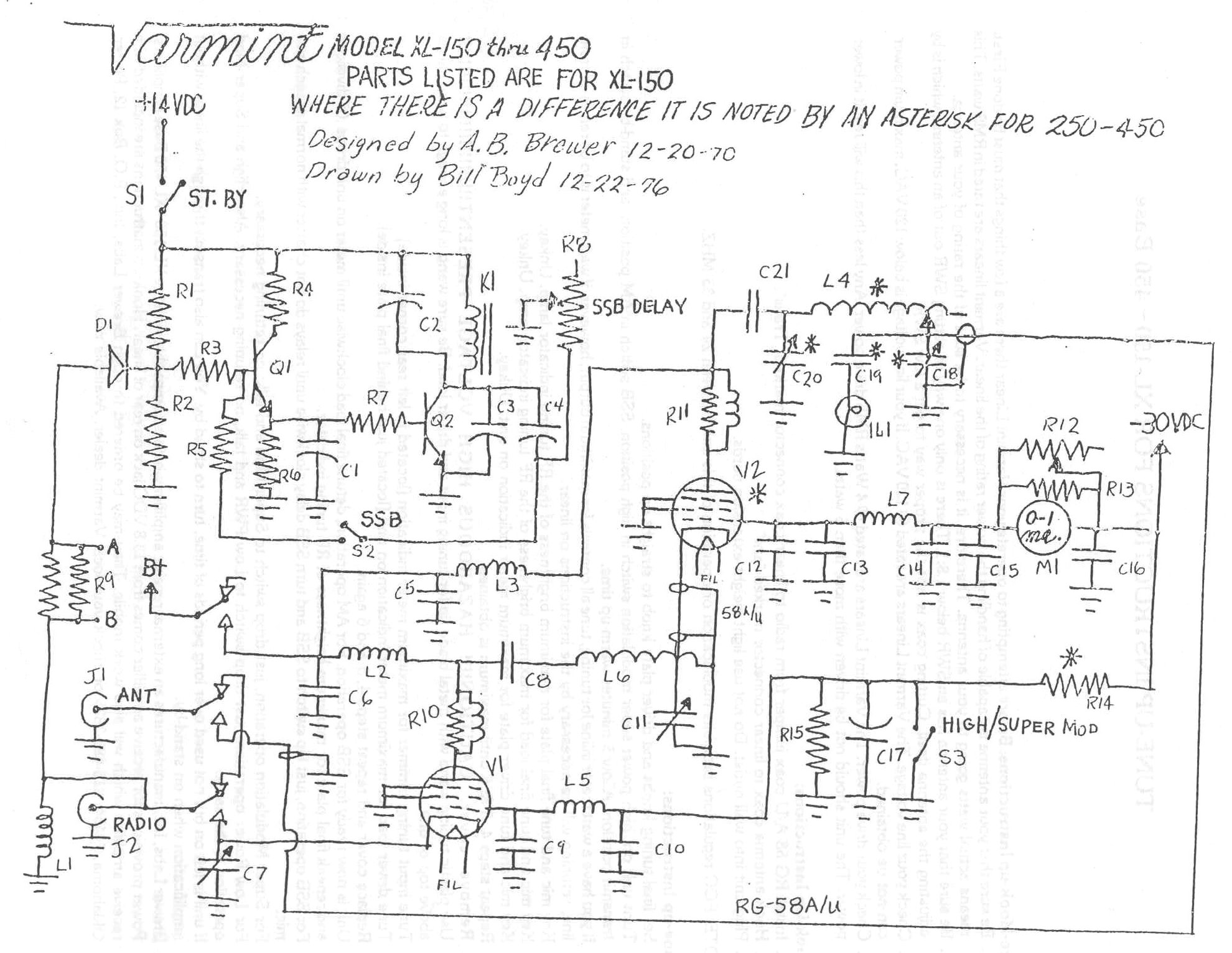

Varmint XL150-450 |
(378k)
xl-150-450_base.pdf
(2946k)
|
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every amp presented.
